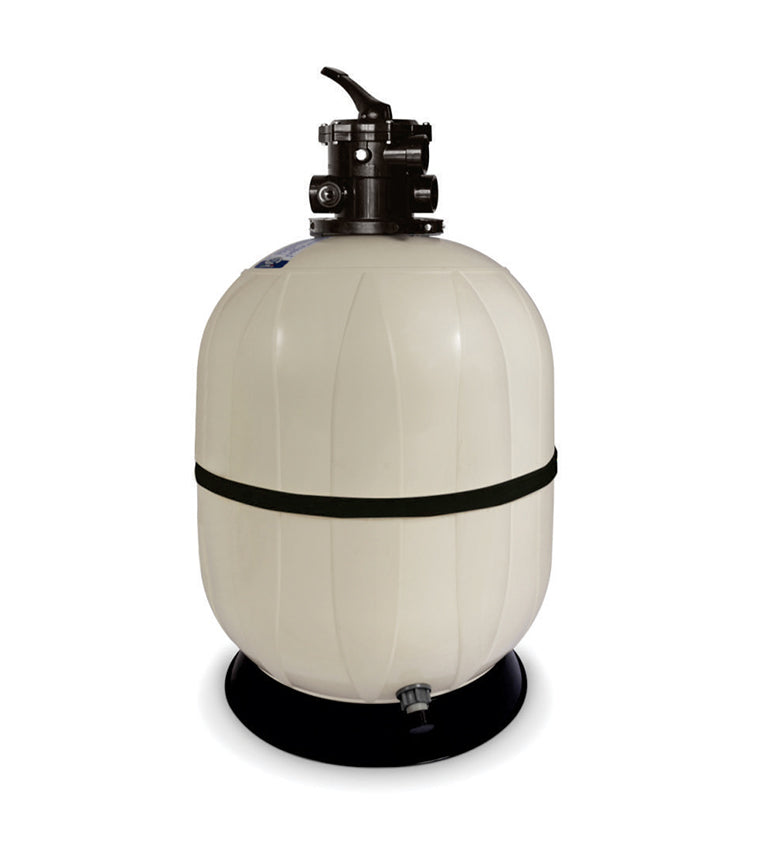

AQUA AQUARIUS 14 620mm top valve sand filter
AQUA

AQUA AQUARIUS 14 Top Valve Sand Filter 620mm

Highlights

  • Nominal flow: 14 m³/h at 50 m/h filtration velocity
  • Topmounted six-way selector valve
  • Filter diameter: 24.41 in
  • Requires 150 kg of sand
All specifications

Description

AQUA AQUARIUS 14 Top Valve Sand Filter

The AQUA AQUARIUS 14 is an injected sand filter for private swimming pools, using a top-mounted six-way valve for filtration, backwash, rinsing, waste, circulation, and lock operations.

Verified Specifications

  • Model: AQUARIUS 14
  • Product code: 100100974
  • Filter diameter: 24.41 inches (620 mm)
  • Nominal flow rate: 14 m³/h at 50 m/h filtration velocity
  • Connection: 1½ inch
  • Sand requirement: 150 kg
  • Overall dimensions: 31.18 inches (F) × 37.80 inches (H)
  • Filter weight: 20 kg
  • Top-mounted six-way valve
  • Filter discharge: ¾ inch
  • Operating temperature: 5–40°C
  • Maximum working pressure: 2.5 bar; test pressure: 4 bar
  • 5-year warranty on filter body

Specifications

Brand
AQUA
SKU
100100974
Category
Pool & Spa Filters
Max filter flow
14.0 m³/h
Diameter
620 mm
