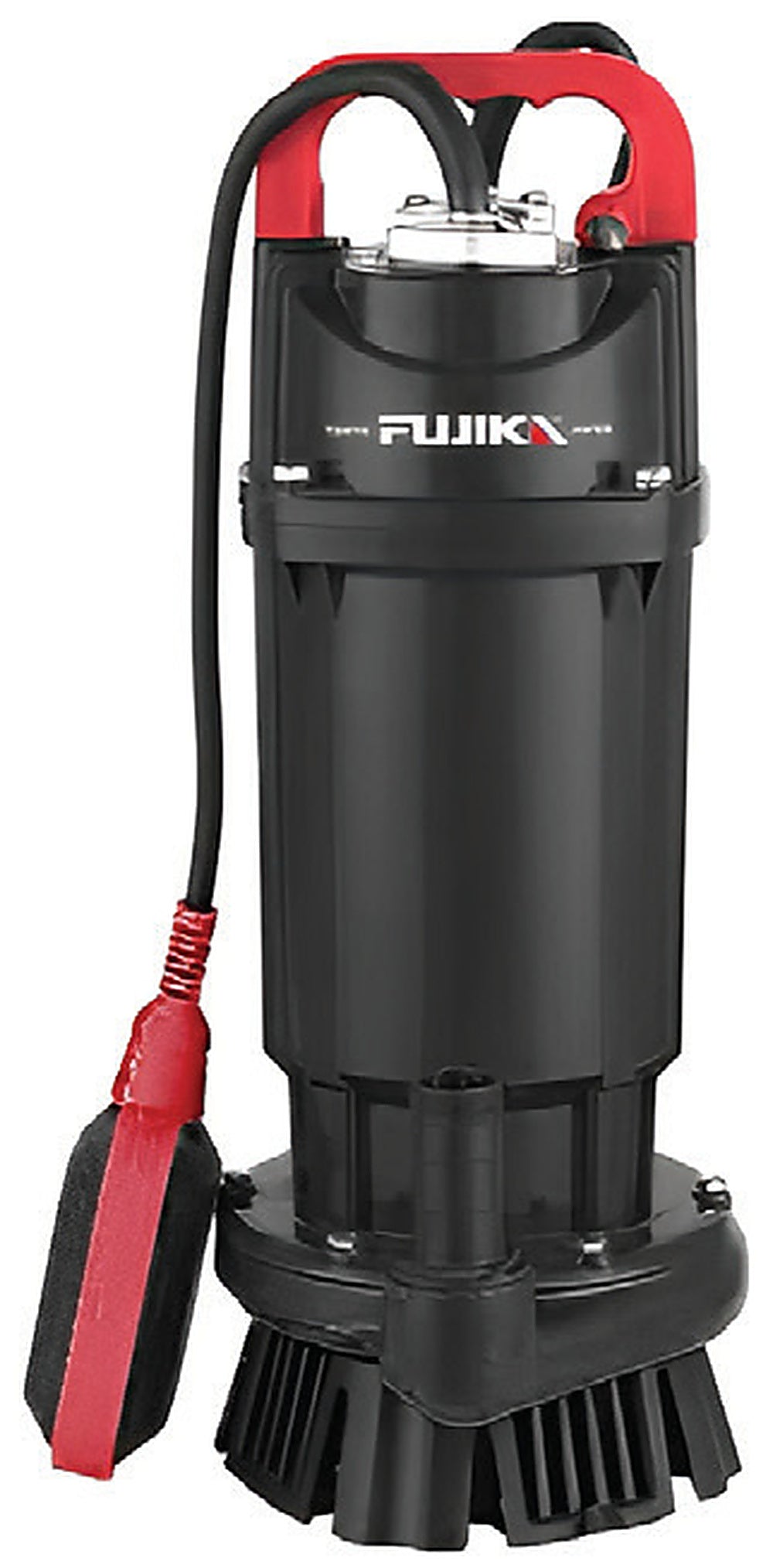

FUJIKA FDA25 Aluminium Submersible Pump Series

Choose the required FDA25 model from the variants. Each option has its own model number, power, performance data, SKU and price. Review the selected model's specifications before purchase.

Model specifications

Shared series specifications

Common series notes: Aluminium submersible drainage pump for transferring clean or slightly dirty water. Series ratings from the supplied manufacturer information: IPX8 protection, Class F insulation, maximum liquid/ambient temperature 40°C, maximum submergence 5 m, water pH 6.5–8, maximum sand content 0.1%, suspended-solids passage up to 0.2 mm. The mF suffix indicates a single-phase version with float switch. Verify the model-specific performance curve and electrical rating before installation.

Applications

Water transfer, storage-tank filling, rainwater drainage, light-duty dewatering, and suitable water features or irrigation applications.

Installation and safety

Install vertically on a stable base, keep the suction strainer clear, allow free movement of the float switch where fitted, and provide secure discharge piping, grounding and suitable electrical protection. Never lift the pump by its power cable.
