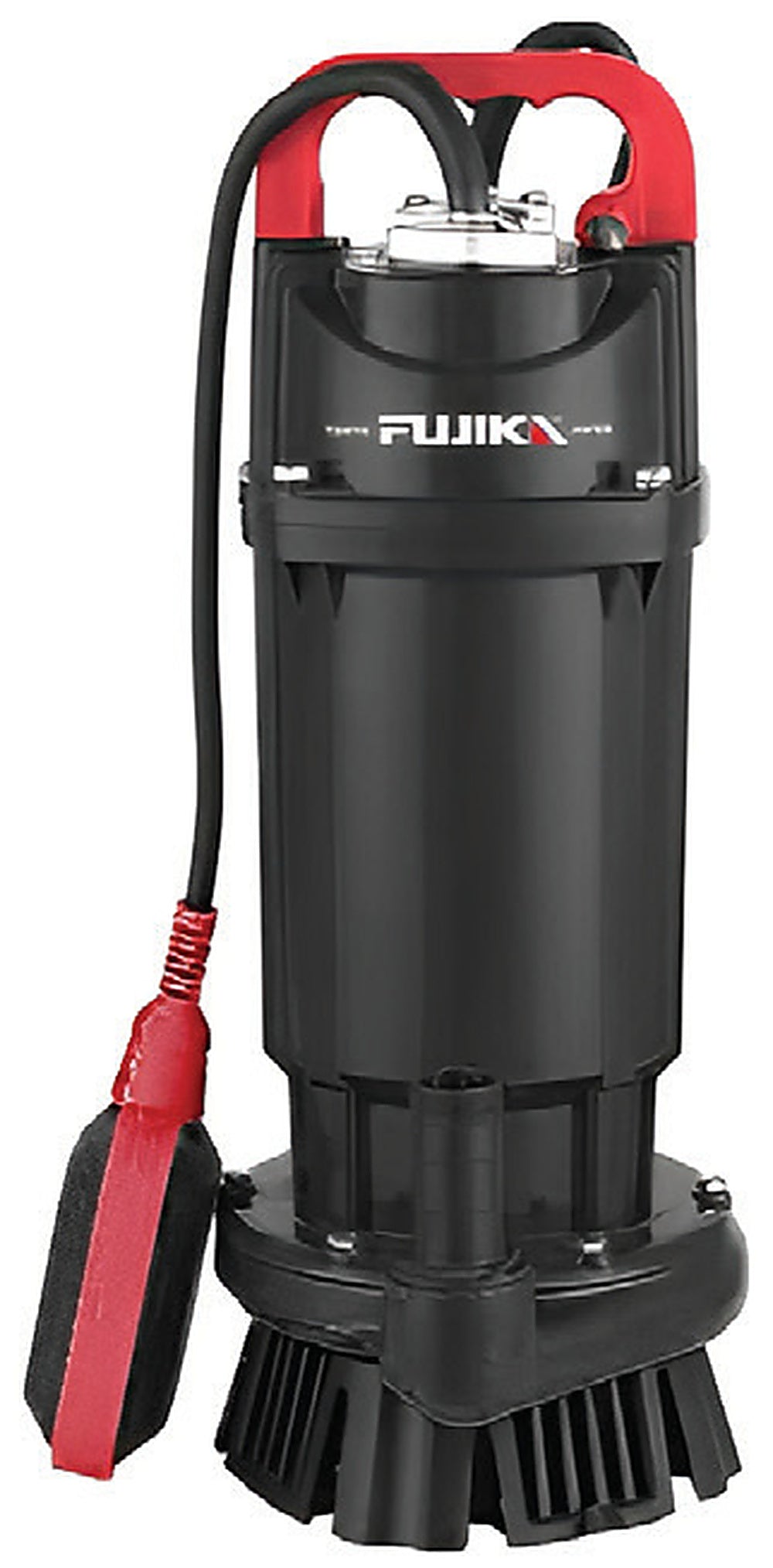

FUJIKA FDA50 Submersible Pump 1HP 2 Inch

FUJIKA FDA50-series submersible drainage pump for transferring clean or slightly dirty water in suitable domestic and commercial applications.

Technical specifications

• Model: FDA50/10-16/750mF
• Power: 0.75 kW / 1 HP
• Maximum flow: 20 m³/h
• Maximum head: 16 m
• Outlet: 2 inches
• Voltage: 220 V single phase
• Frequency: 50/60 Hz
• Aluminium body; IPX8; Class F insulation
• Maximum liquid and ambient temperature: 40°C
• Maximum submergence: 5 m
• Water pH 6.5–8; maximum sand content 0.1%; suspended-solids passage up to 0.2 mm
• mF indicates single phase with float switch.

Applications include water transfer, tank filling, rainwater drainage and light-duty dewatering. Install vertically on a stable base, keep the strainer clear, provide grounding and suitable electrical protection, and never lift by the power cable.
