FCMI-N3-6T مضخة الضغط العالي

FCMI-N3-6T

Features : -
-Water building service
-Irrigation and sprinklers
-Pressureization water network
-Hot/Cold water circulation
-Aggressive water containing oil
-Sea water

Classifications:
- FCMI : Standard SS304
- FCMI-N: SS316
- T: Three phase

Horizental Multi-Stage Pump
Low Temperature : -20 up to +70°C
Standard Model : -15 +70 °C
High Temperature : +70 up to +104°C
Ambient temp: Up to +50 ℃
Max Working Pressure : 0.8 MP
Thermal protector
Three Phase
Insulation: - CLASS 155 (F)
Protection: - IPX5
Wetted parts completly Stainless Steel 316
Energy saving
Sturdy
Durable
60HZ
Model Outlet Max flow Max head Power Motor speed Current source
mm m3
/h meter KW HP r/min
FCMI-N3-6T DN25 5 82 1.3 1.75 3500 3X 220-380V

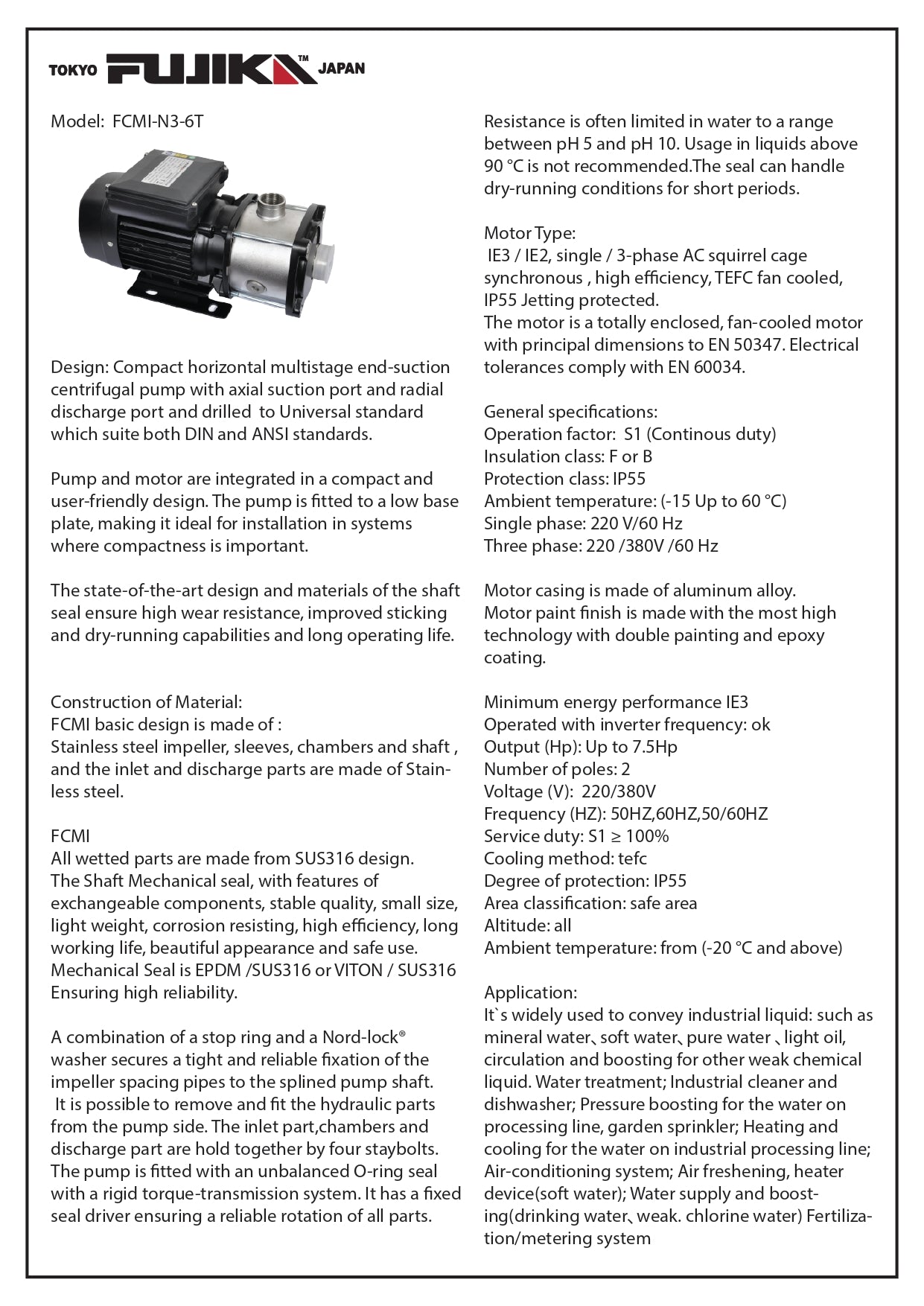

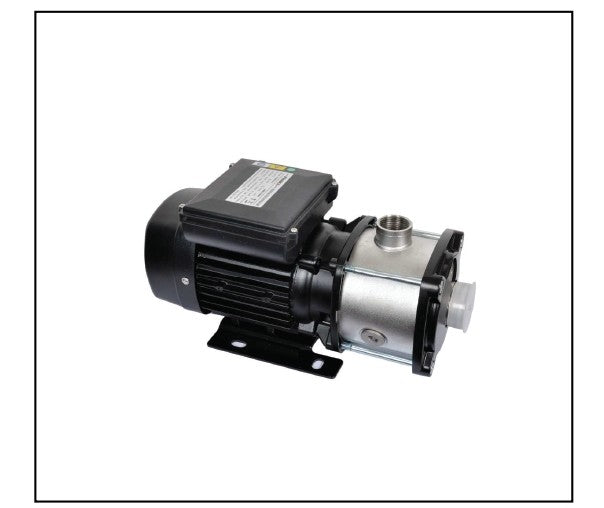

Compact horizontal multistage end-suction centrifugal pump with axial suction port and radial
discharge port made of stainless steel 316, widely used to convey industrial liquid such as mineral
water, soft water, pure water, light oil, circulation and boosting for other weak chemical liquid.

FCMI-N1-2:
- FCMI : Light horizontal multistage centrifugal pump
- N: SS316
- 1: nominal ow (m3/h)
- 2: number of stages
